Description
The Ovation Height-Adjustable Workstation System is the latest table system from Thinking Works. It’s unique oval profile and design elements provide countless possibilities and flexibility to suit any workplace environment. Ovation is available as Single Sided, Back to Back, 90° and 120° desking solutions.
Like the arteries of a transport system, we have redesigned the way we route soft wiring, concealing it in an enclosed cable pathway with removable segregation and multiple access points to keep the system running smoothly and efficiently.

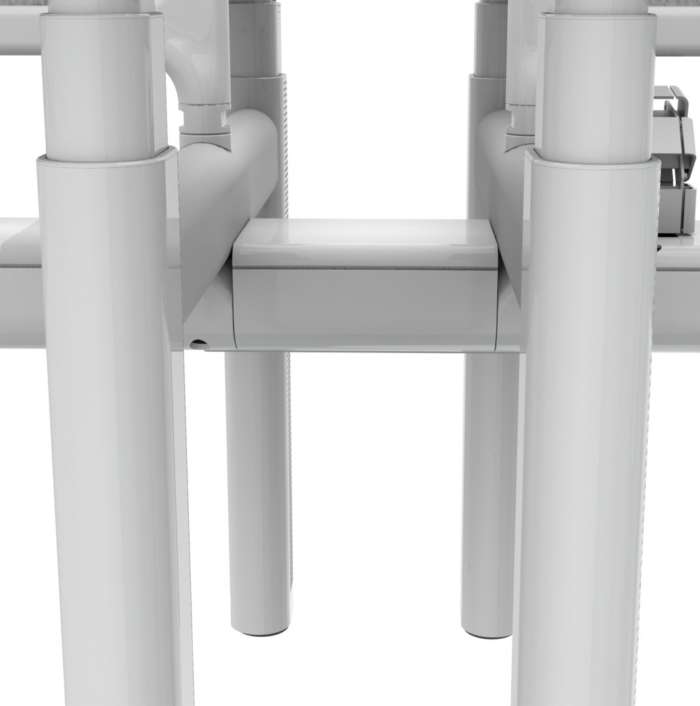

Ovation’s unique oval leg profile offers a sophisticated take on an office essential, and is available as both a fixed and height-adjustable solution. A unique cable bridge option allows the user to conceal and segregate soft wiring from work point to work point. Ovation’s optional Power Pocket Modesty allows for up to 6xGPO points and provides a clean and easy solution for excess cabling.
Acoustic screens are available at two heights with PET and upholstered finish options. Framed and Frameless options are both available. Electric height-adjustable Ovation frames can be pre-programmed to three different height settings and come with an in-built ‘Impact-Stop’ response. 07 Electric height-adjustable Ovation desks have the option to integrate smartphone-based controls via our Bluetooth Wellness App.
Features:
- 3 programmable height settings with Electronic Display
- Built-in Impact Stop Function
- 3 Stage lifting Column with Spindle Drive
- Travel Speed = 35mm/Second
- Noise <50dB
- Standby power consumption 0.5W
- Electric Safety Features
- Impact Stop system minimises damage to Electric Height Adjustable frames from contact with objects obstructing the path of movement
- Impact Stop initiates while the frame is lowering or raising, when 1 second of resistance from obstruction is detected.
- When resistance is detected, the desk will automatically stop, then move 50mm in opposite direction in order to clear the obstruction
- Country of Origin – Australia
- Warranty:
- Electric Frame 10yrs
- Electrical Components 5yrs
- Standard Colour range Blanc (White), Noir (Black)
- Worktops Finished in Standard melamine with ABS edge
Specifications:
- Minimum Height 590mm
- Maximum Height 1210mm
- Dimensions to the underside of the worktop
- Weight Capacity 2 leg 100kg
- Weight Capacity 3 Leg 150kg
- Evenly Distributed Load including worktop
- Maximum Point Load 30kgs
Ovation Finishes:
- Frame Powdercoat – All steel frame is available in Noir and Blanc powder coat.
- Cable Tray – Aluminium cable management tray is available in Noir and Blanc powder coat.
- Acoustic Screen – Our Ovation screen is available in Dark Grey and Light Grey acoustic panel.
- Screen mounts are finished in Noir and Blanc powder coat.
- Framed Acoustic Screen – Our unique Ovation framed screen is available in Dark Grey and Light Grey acoustic panel or upholstered with customer supplied fabric. The aluminium frame is finished in a Noir or Blanc powder coat.
Desk Options:
- Electric Single-Sided – Straight desk, 90° and 120°
- Electric Double Sided – Straight desk, 90° and 120°
- Fixed Single – Straight desk, 90° and 120°
- Fixed Double-Sided – Straight desk, 90° and 120°
- Fixed Double-Sided – Straight desk, 90° and 120°
Accessories:

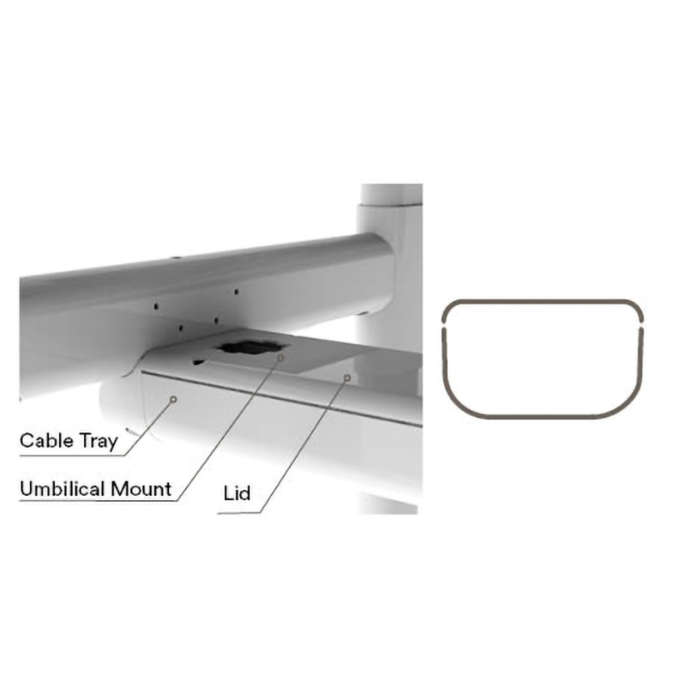

Cable Management
- Cable Tray Body – Noir and Blanc
- Cable Tray Lid – Noir and Blanc
- Cable Tray End Caps – Noir and Blanc
- Cable Tray Bridge Bod – Noir and Blanc
- Cable Tray Bridge Lid – Noir and Blanc
- Cable Umbilical – Noir and Blanc
- Fabric Umbilical – Light Grey
Power Pocket
- Power Pocket – Bracket Noir
- Fabric Cable Pocket – Light Grey
Power Modesty
- Power Pocket Bracket – Noir
- Fabric Cable Pocket – Light Grey
Framed Acoustic Screens
- Framed Acoustic Screen – PET Panel – Light Grey, Dark Grey, Upholstered – Customer Supplied Fabric
- Screen Frame: Powdercoat Aluminium Screen Mount and Extrusion – Noir and Blanc
- Acoustic Screen – PET Screen Panel
- Screen Mounts – Powdercoat Aluminium – Noir and Blanc
Frameless Upholstered Screens
- Upholstered Screen Fabric – Customer Supplied
- Screen Mounts – Powdercoat Aluminium Screen – Mount and Extrusion – Noir and Blanc
PET Acoustic Screens
- Acoustic Screen – PET Screen Panel – Light Grey, Dark Grey
- Screen Mounts – Powdercoat Aluminium Screen – Mount and Extrusion – Noir and Blanc
PET Acoustic Screens
- Acoustic Screen – PET Panel – Light Grey, Dark Grey
- Screen Mounts – Powdercoat Steel Screen Mount – Noir and Blanc
Frame Mounted Cable Cover
- Cable Cover – Powdercoat Steel – Noir
- Available in different lengths:
Download Ovation Product Brochure
Download Ovation Product Specifications
