Triple monitor “stack” desk mount
Triple Monitor “Stack” LCD Arm
Description
Triple monitor “stack” desk mount

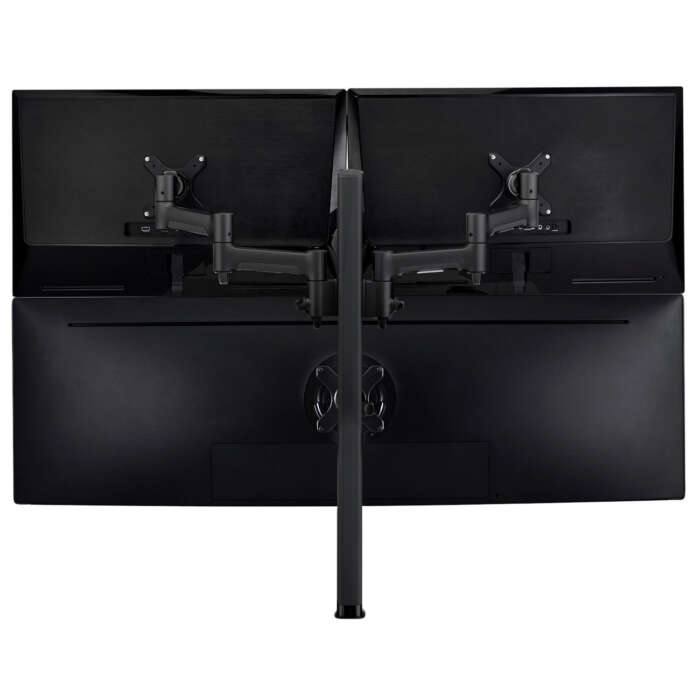

The AWMS-3-TH467 is a robust desk mount designed to support three displays in a “pyramid” like configuration. Two articulated arms are capable of supporting screens up to 32″ side-by-side, while the short arm can accommodate wide and ultra-wide displays. It maximises display real estate and saves valuable desk space at the same time. Monitor arms can be installed in any of 4 available post channels and arranged to the desired configuration.
Modular by nature, this mount can be easily upgraded/downgraded. This solution consists of the following individual components:
2 x monitor arms
1 x Heavy duty tilt head. VESA 75 x 75, 100 x 100
1 x 750mm post
1 x Mounting post channel clamp for arms
1 x Heavy Duty F-Clamp
2 x monitor arms
1 x Heavy duty tilt head. VESA 75 x 75, 100 x 100
1 x 750mm post
1 x Mounting post channel clamp for arms
1 x Heavy Duty F-Clamp
Features:
- Improves the ergonomics of any workplace and saves valuable desk space
- Modular, adaptable and upgradeable design
- Easy to install and re-configure with quick display release and arm fixing mechanism
- Built-in optional arm rotation limiters to prevent interference with walls, partitions or other displays
- Made of durable aluminium that can be easily recycled at the end of life
- Advanced cable management
- Choice of desk mounting options
- Available in Silver, Black or White finish
Specifications:
- Material Aluminium
- Colour Options: Silver, Black, White
- Warranty 10 years
- Flat screen: maximum supported weight: 18kg
- Curved screen: maximum supported weight: 12kg
- VESA mounting hole pattern, mm 75×75, 100×100
- Pan adjustment
- Landscape to portrait screen rotation
- Height adjustable
- Maximum arm reach: 458mm
